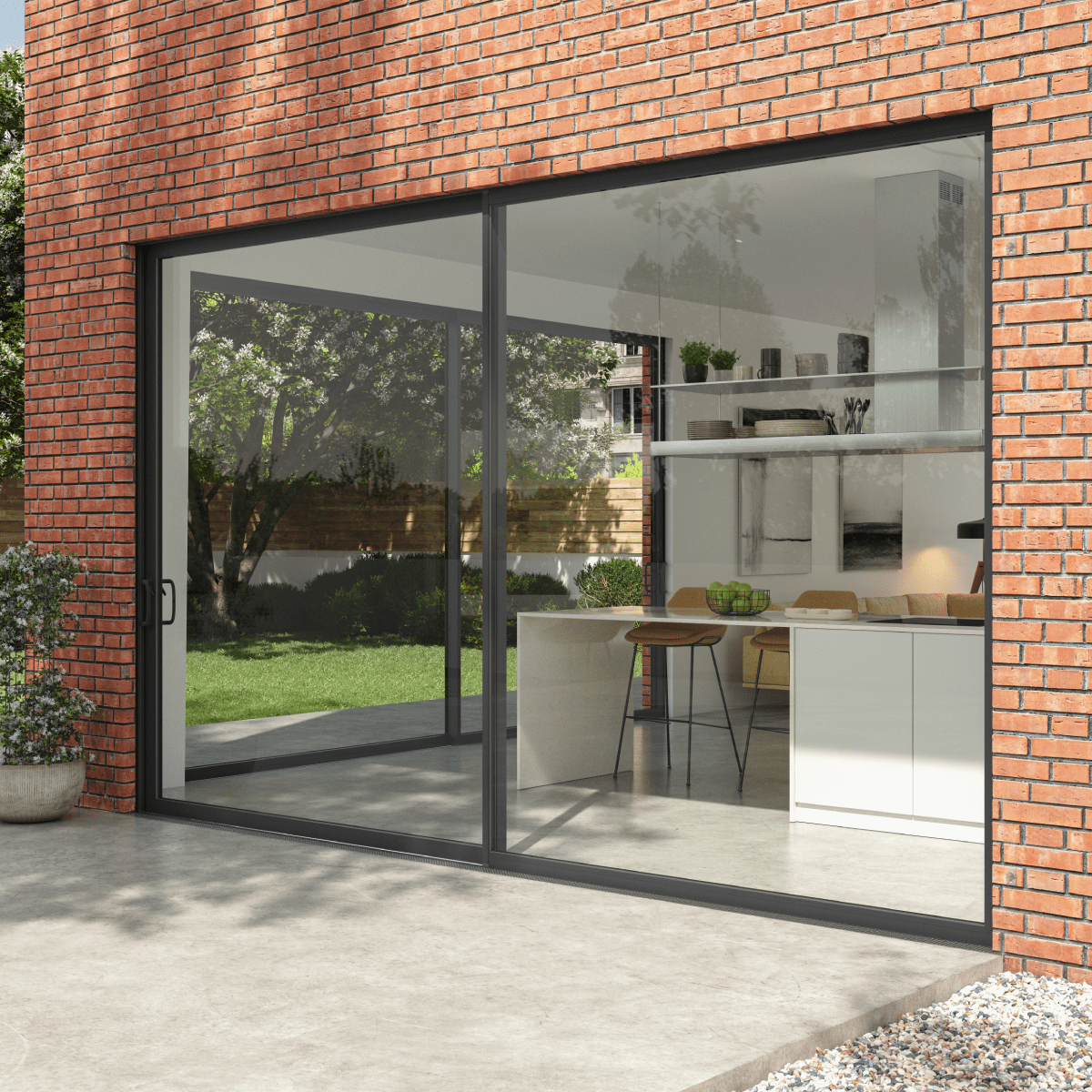

The Xlaslide aluminium sliding door system is a slimline and high performing product. Its slim sightlines and compact design maximise natural light intake to create a modern and bright interior space which is directly connected to the outdoor space.

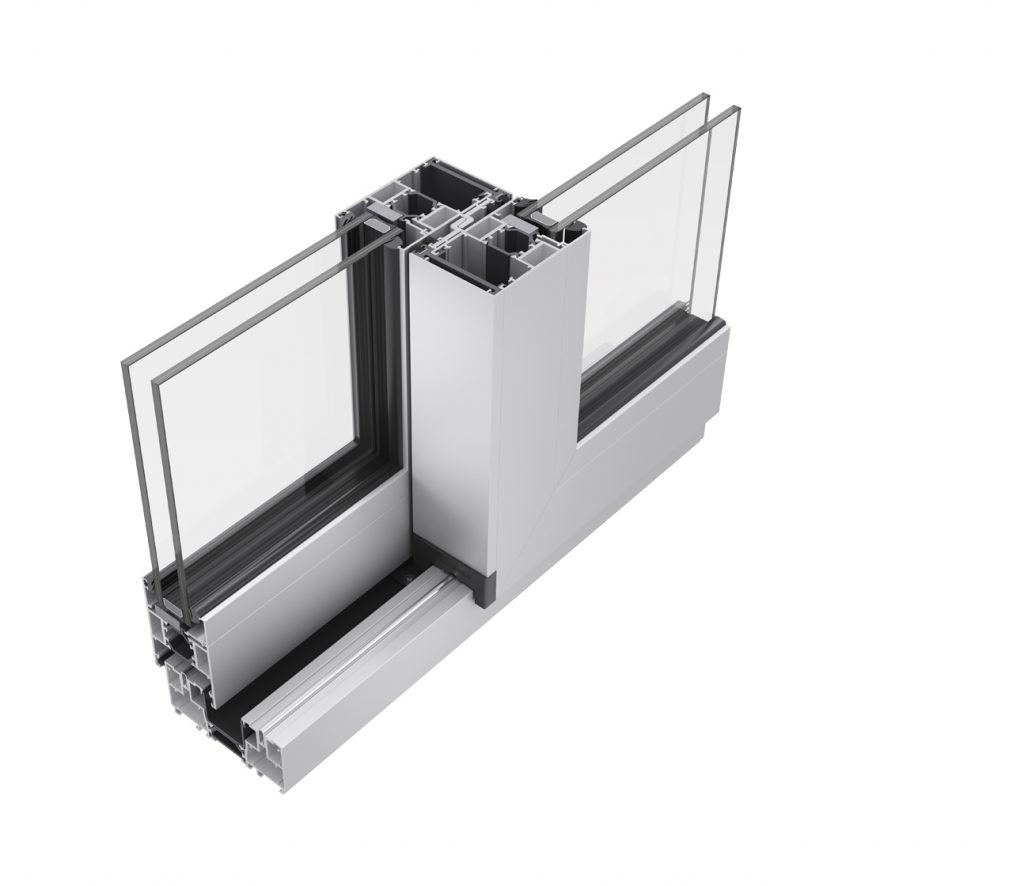

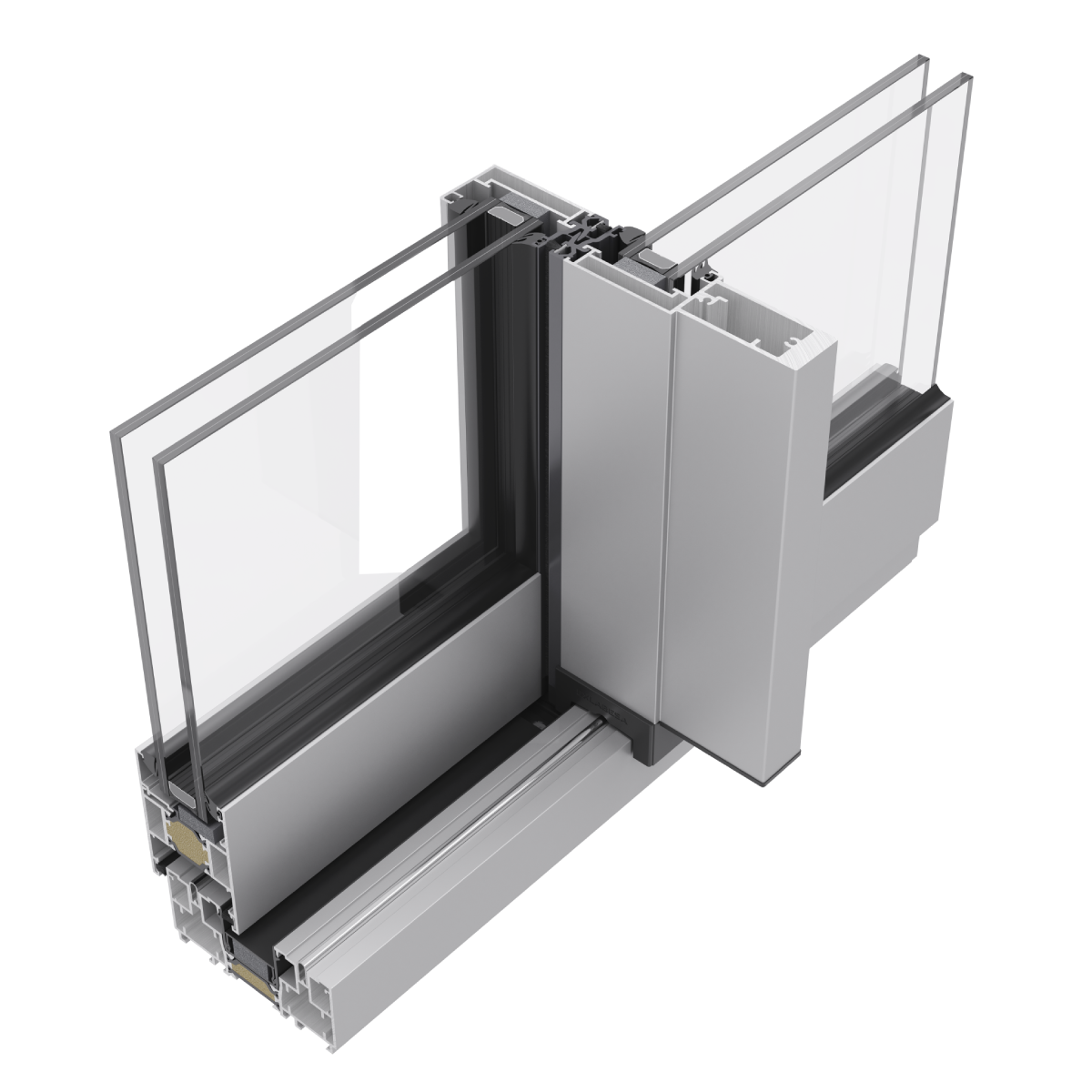

The Xlaslide features mechanical corner joints for ease of fabrication. It has a slim interlock detail of only 32mm and can be combined with Exlabesa 75mm systems to incorporate either fixed or openable side lights. The Xlaslide door is internally beaded to maximise security and can support doors with a maximum weight of 200kg. It is available with twin and triple track options and functions on a smooth sliding heavy duty roller system for years of hassle-free operation.

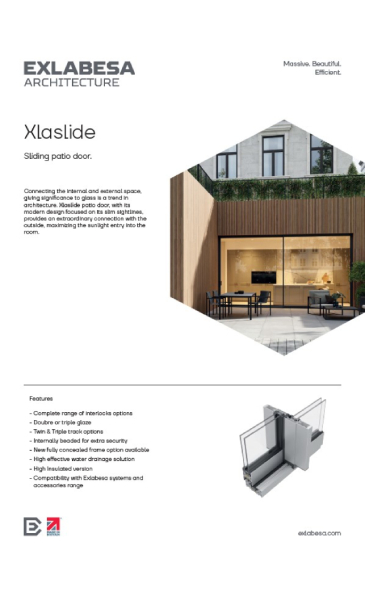

Xlaslide-Jun_23-v3
  • Features
  • Technical information
  • Performance
  • Benefits
  • Downloads
  • FAQ
  • Features

    • Complete range of interlocks options
    • Double or triple glaze
    • Twin & triple track options
    • Internally beaded for extra security

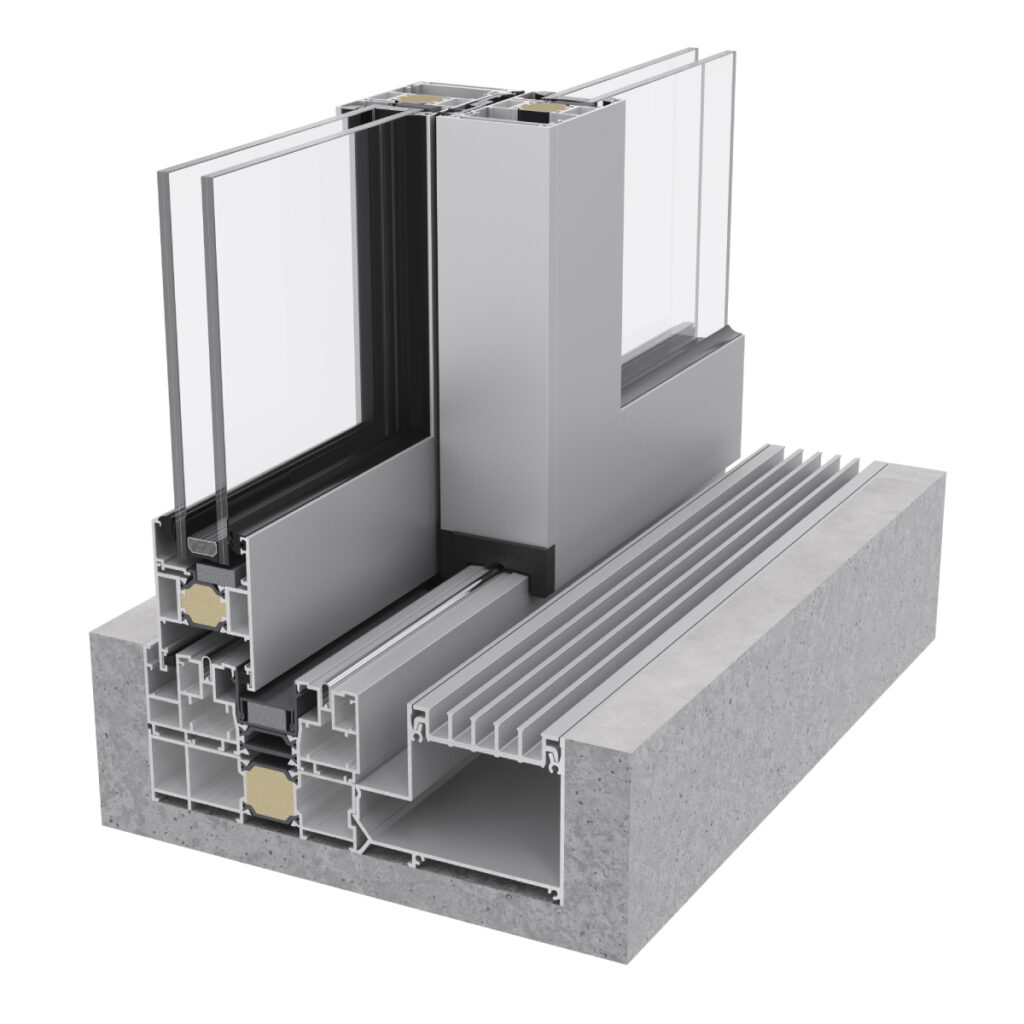

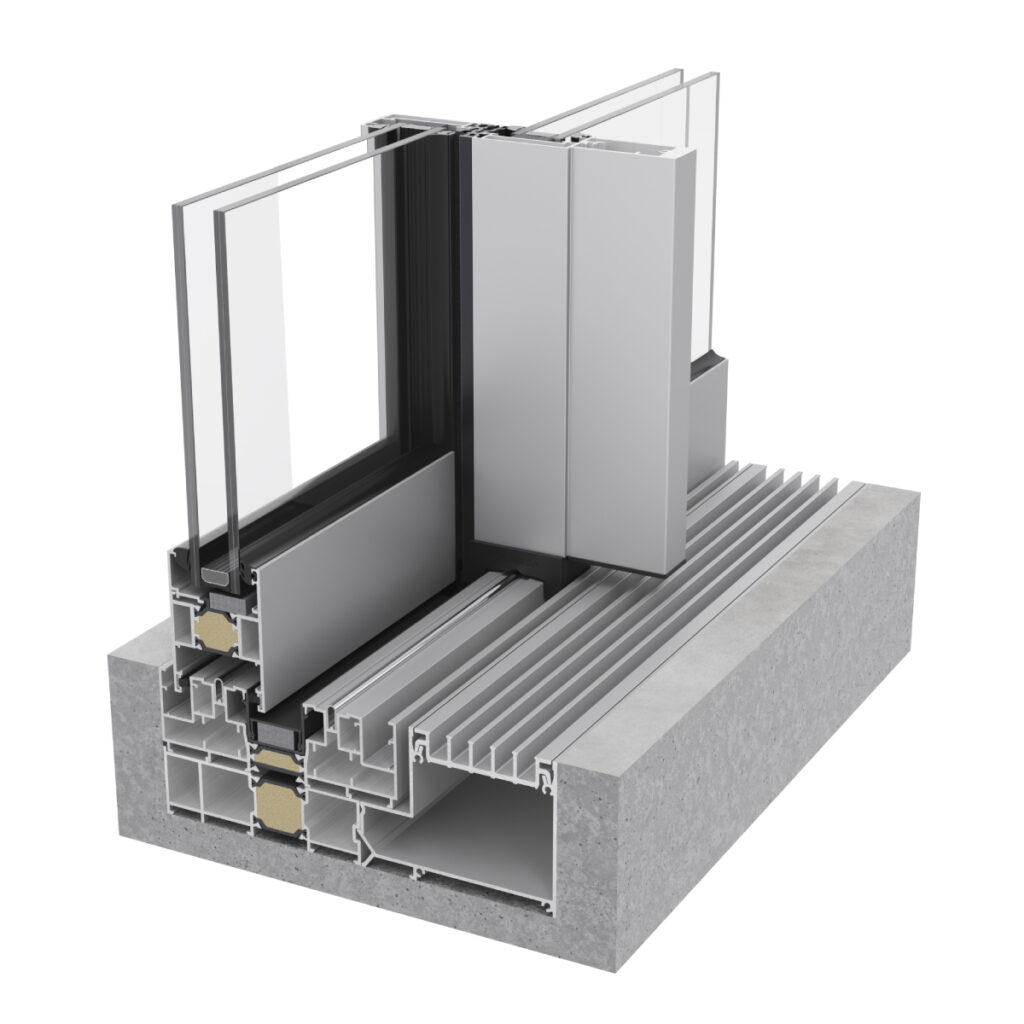

    • New fully concealed frame option available
    • High effective water drainage solution
    • Highly insulated version
    • Compatibility with Exlabesa systems and accessories range
    Get in touch

    Technical information

    • Air permeability*: Class 4
    • Water tightness*: Class 5A
    • Wind load*: Class B3
    • Thermal insulation Uw: Double glaze - 1,4 W/m²K

    * Air/Water/Wind test according to standard BS6375-1
    ** Please note: U-Values are dependant on size and glass U-Values.

    Get in touch

    Performance

    • Maximum leaf size: 2500mm x 2500mm
    • Maximum weight: 200kg
    • Maximum glazing: 36 mm
    • Polyamide: 24mm
    • Air/Water/Wind tests according to standard BS6375-1

    Get in touch

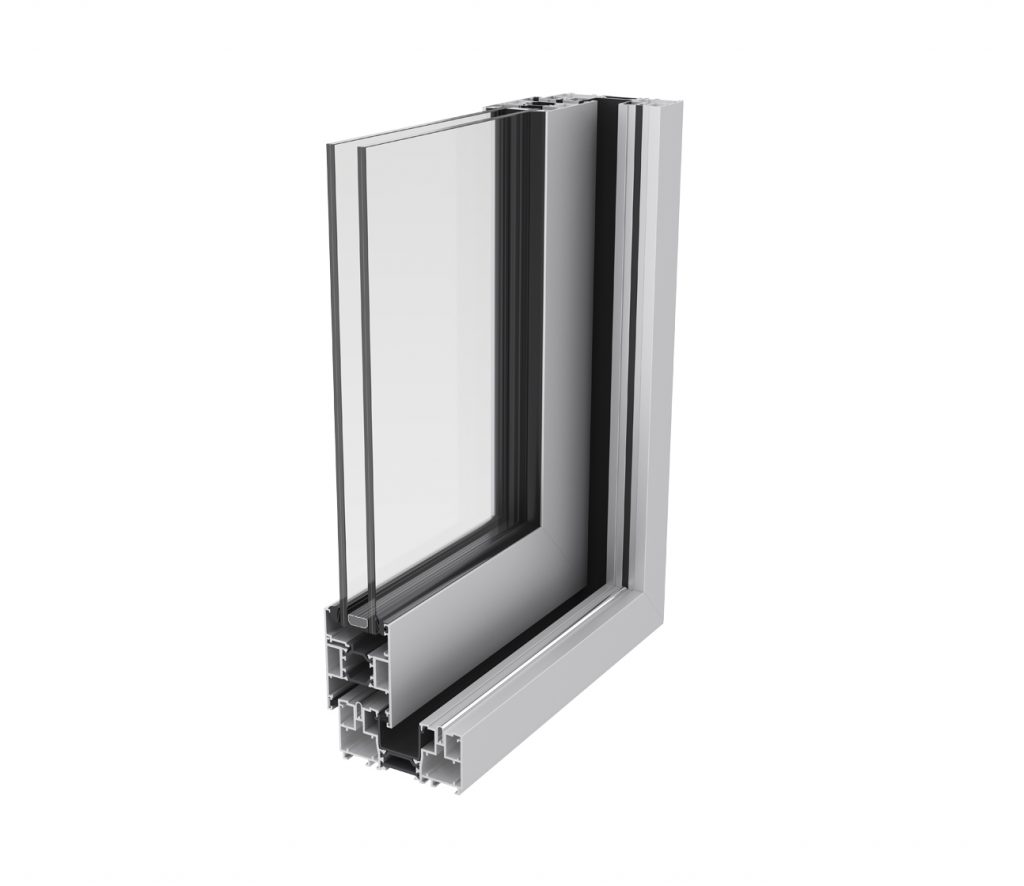

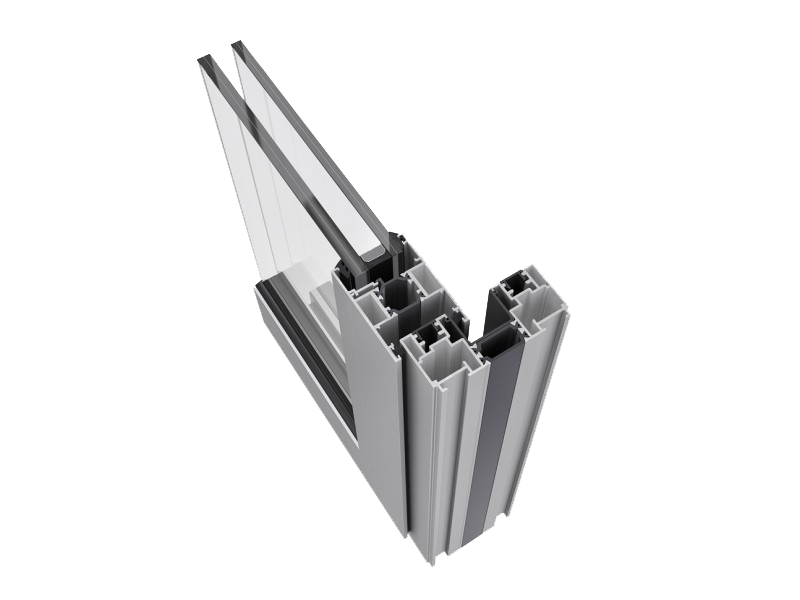

    Sample cut out

    Benefits

    Design

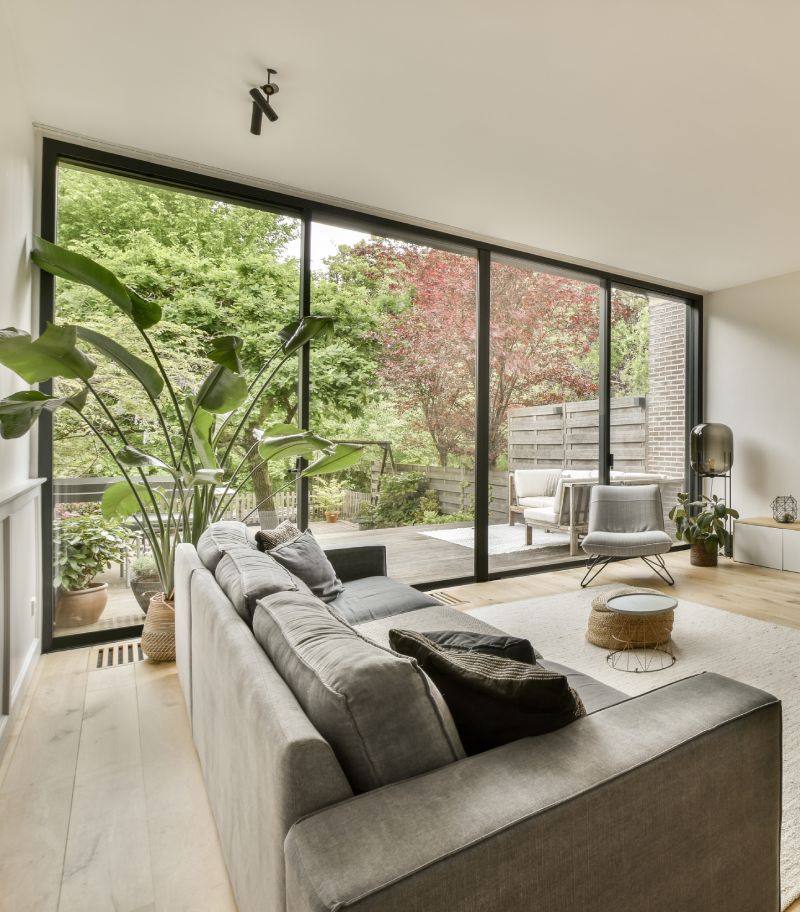

    Thanks to its slim sightlines and invisible outer frame, the Xlaslide system is perfectly suited for contemporary large-format sliding doors, ensuring a seamless connection and full accesibility between the inside and outside.

    Features
    This internally beaded system allows a sash size of 2500x2500 mm with a maximum of 200 kg per sash. Fully compatible with the Exlabesa range of accessories, it can be coupled to Exlabesa 75 mm systems to offer fixed or opening side lights.

    Benefits
    The oustanding adaptability and smart design of the Xlaslide set the trend for a cost-effective, fabricator-friendly solution with excellent specifications. Made in Britain to exceed current Building Regulations.

    Possibilities
    The Xlaslide sliding system provides advanced options as a fully concealed frame, water drainage solution and triple track. A range of different interlocks is also available, including standard, slim and reinforced, along with a high insulated version for the most demanding projects.

    Get in touch

    Downloads

    FAQ

    {"@context":"https://schema.org","@type":"FAQPage","mainEntity":[{"@type":"Question","name":"Are aluminium sliding doors good?","acceptedAnswer":[{"@type":"Answer","text":"Yes, aluminium sliding doors are made to be strong and they need minimal maintenance. They are secure and energy-efficient so they can even save you money on energy bills."}]},{"@type":"Question","name":"Are sliding doors worth it?","acceptedAnswer":[{"@type":"Answer","text":"Sliding doors are a great investment. If you have a room that faces the garden and want a way to open the room up, sliding doors are the perfect option. They dont take up much space and the large glass area lets light flood in as well as offering fantastic views."}]}]}

    Are aluminium sliding doors good?

    Yes, aluminium sliding doors are made to be strong and they need minimal maintenance. They are secure and energy-efficient so they can even save you money on energy bills.

    Are sliding doors worth it?

    Sliding doors are a great investment. If you have a room that faces the garden and want a way to open the room up, sliding doors are the perfect option. They dont take up much space and the large glass area lets light flood in as well as offering fantastic views.
